Getting Visual Studio Code Ready for TypeScript: Part 2

Part 2: Writing Jasmine Tests in TypeScript

This is the second part in a series of blog posts on Getting Visual Studio Code Ready for TypeScript:

  1. Compiling TypeScript to JavaScript
  2. Writing Jasmine Tests in TypeScript (this post)

Jasmine vs Mocha + Chai + Sinon


There are numerous JavaScript testing frameworks, but two of the most popular are Jasmine and Mocha.  I won’t perform a side-by-side comparison here, but the main difference is that Mocha does not come with built-in assertion and mocking libraries, so you need to plug in an assertion library, such as Chai, and a mocking library, such as Sinon.  Jasmine, on the other hand, includes its own API for assertions and mocks.  So if you want to keep things simple with fewer moving parts, and you don’t need extra features offered by libraries such as Chai and Mocha, Jasmine might be a more appealing option.  If, on the other hand, you want more flexibility and control, and you want features offered by dedicated assertion and mocking libraries, you might want to opt for Mocha.  For simplicity I’m going to stick with Jasmine in this blog post, but feel free to use Mocha if that better suits your purpose.

You can download a sample project with code for this blog post.  You can also download my Yeoman generator for scaffolding new TypeScript projects for Visual Studio Code.

Update: Since first publishing this blog post, I added a section on Debugging Jasmine Tests in VS Code, which you can find at the end of the article.

Using Jasmine with TypeScript

Jasmine is a behavior-driven development testing framework, which allows you to define test suites through one or more nested describe functions.  Each describe function accepts a string argument with the name of the test suite, which is usually the name of the class or method you are testing.  A test suite consists of one or more specs, formulated as a series of it functions, in which you specify expected behaviors.

Let’s say you have a Greeter class written in TypeScript, and it has a greet function.

namespace HelloTypeScript {
    export class Greeter {
        constructor(public message: string) {

        }
        greet(): string {
            return "Hello " + this.message;
        }
    }
}

Notice that Greeter is defined within the namespace HelloTypeScript and is qualified with the export keyword.  This removes Greeter from the global scope so that we can avoid potential name collisions.

To use Jasmine we’ll need to install jasmine-core (not jasmine) using npm (Node Package Manager).  Because we’re only using Jasmine at development-time, we’ll save it to the package.json file using the –save-dev argument.

npm install --save-dev jasmine-core

Intellisense for Jasmine

To allow Visual Studio Code to provide intellisense for Jasmine, you’ll need to install type definitions using Typings, which replaces the deprecated Tsd tool from Definitely Typed.

npm install -g typings

Use Typings to install type definitions for jasmine.

typings install jasmine --save-dev --ambient

This command will result in the addition of a typings folder in your project, which contains a main.d.ts file with references to installed type definitions.  The –save-dev argument will persist the specified typing as a dev dependency in a typings.json file, so that you can re-install the typings later.  The –ambient argument is required to include Definitely Typed in the lookup.

Now you’re ready to add your first Jasmine test.  By convention you should use the same name as the TypeScript file you’re testing, but with a .spec suffix.  For example, the test for greeter.ts should be called greeter.spec.ts and be placed in the same folder.

/// <reference path="../../typings/main.d.ts" />

describe("Greeter", () => {

    describe("greet", () => {

        it("returns Hello World", () => {

            // Arrange
            let greeter = new HelloTypeScript.Greeter("World");

            // Act
            let result = greeter.greet();

            // Assert
            expect(result).toEqual("Hello World");
        });
    });
});

The triple-slash reference is needed for intellisense to light up.  Without it you’ll see red squigglies, and VS Code will complain that it cannot find the name ‘describe’.

When you press Cmd+B to compile your TypeScript code, you will see a greeter.spec.js file in the dist/greeter directory, where the greeter.js file is also located.  You’ll also see a greeter.spec.js.map file to enable debugging of your Jasmine test.  (See the first post in this blog series for information on how to configure VS Code for compiling and debugging TypeScript.)

Running Jasmine Tests

To run your Jasmine tests in a browser, go to the latest release for Jasmine and download the jasmine-standalone zip file.  After extracting the contents of the zip file, copy both the lib folder and SpecRunner.html file to your project folder.  Edit the html file to include both the source and spec files.

<!-- include source files here... -->
<script src="dist/greeter/greeter.js"></script>

<!-- include spec files here... -->
<script src="dist/greeter/greeter.spec.js"></script>

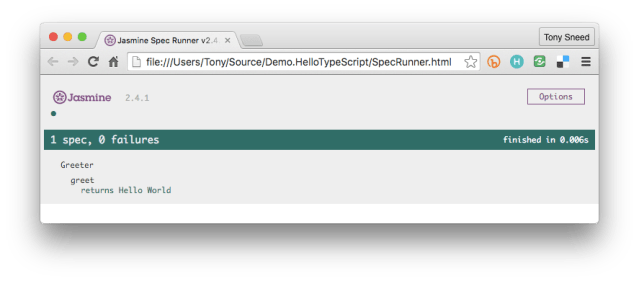

You can then simply open SpecRunner.html in Finder (Mac) or File Explorer (Windows) to see the test results.

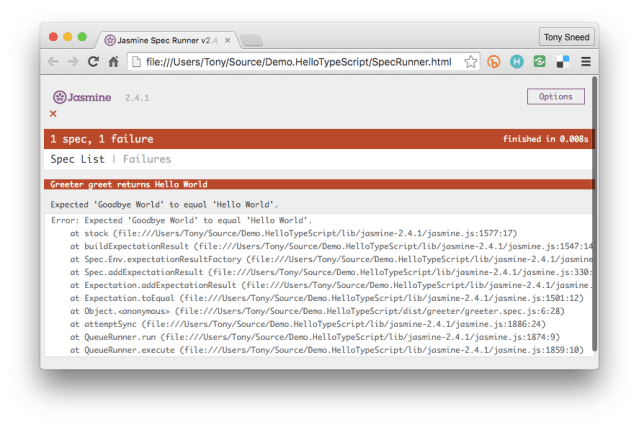

If you change Greeter.greet to return “Goodbye” instead of “Hello”, then compile and refresh the browser, you’ll see that the test now fails.


Running Tests Automatically

Having to refresh the browser to see test results can become tedious, so it’s a good idea to serve your tests using http.  To help with this you can use a task runner such as Gulp, which integrates nicely with VS Code, together wish an http server such as BrowserSync.


First, you’ll want to install gulp and browser-sync locally.

npm install --save-dev gulp browser-sync

Next, add a gulpfile.js file to the project, in which you’ll define tasks for compiling TypeScript to JavaScript, as well as watching TypeScript files and recompiling them when there are changes.

var gulp = require('gulp');
var exec = require('child_process').exec;
var browserSync = require('browser-sync');

gulp.task('compile', function () {
    exec('rm -rf dist && tsc -p src');
});

gulp.task('watch', ['compile'], function () {
    return gulp.watch('./src/**/*.ts', ['compile']);
});

To run either the compile or watch tasks, we can execute them from a Terminal or Command Prompt.  (You can also run tasks in VS Code by pressing Cmd+P, typing “task ” [no quotes] and entering the task name).

gulp watch


If you change a TypeScript file, the gulp watch task will detect the change and execute the compile task.  You can then add a gulp task which serves both .js and .spec.js files in a browser.

gulp.task('test', ['watch'], function () {

    var options = {
        port: 3000,
        server: './',
        files: ['./dist/**/*.js',
                './dist/**/*.spec.js',
                '!./dist/**/*.js.map'],
        logFileChanges: true,
        logLevel: 'info',
        logPrefix: 'spec-runner',
        notify: true,
        reloadDelay: 1000,
        startPath: 'SpecRunner.html'
    };

    browserSync(options);
});

Running Tests in VS Code

It is possible to wire up the gulp test task so that it runs in response to pressing Cmd+T.  To set up VS Code both for compiling TypeScript and running tests, press Cmd+Shift+P, type “config” and select Configure Task Runner. Replace the default content for tasks.json with the following:

{
    "version": "0.1.0",
    "command": "gulp",
    "isShellCommand": true,
    "args": [
        "--no-color"
    ],
    "tasks": [
        {
            "taskName": "compile",
            "isBuildCommand": true,
            "showOutput": "silent",
            "problemMatcher": "$gulp-tsc"
        },
        {
            "taskName": "test",
            "isTestCommand": true,
            "showOutput": "always"
        }
    ]
}

Pressing Cmd+B will compile your TypeScript files, and pressing Cmd+T will serve your Jasmine tests in a browser, automatically refreshing the browser each time any of your TypeScript files changes.

Using Modules

To improve encapsulation TypeScript supports the use of modules, which are executed in their own scope, not in the global scope.  Various constructs, such as variables, functions, interfaces and classes, are not visible outside a module unless they are explicitly exported.  For example, we could define an ItalianGreeter class with an export statement.

export default class ItalianGreeter {
    constructor(public message: string) {

    }
    greet(): string {
        return "Ciao " + this.message;
    }
}

The Jasmine test for ItalianGreeter would then require an import statement.

import ItalianGreeter from "./italiangreeter";

let greeter = new ItalianGreeter("World");

// Remaining code elided for clarity

To use modules in TypeScript you’ll need to specify a module loader in your tsconfig.json file.  For a TypeScript library or node.js app, you would select commonjs.

{
    "compilerOptions": {
    "module": "commonjs",

// Remaining code elided for clarity

At this point your TypeScript will compile, but the additional tests will not show up in SpecRunner.html, even after you include scripts for the source and spec files.  The reason is that you need SystemJs, which acts as a polyfill to provide support in the browser for module loading, which is a feature of ECMA Script 2015. First add systemjs to your project.

npm install --save-dev systemjs

Then add these two scripts to SpecRunner.html.

<script src="node_modules/systemjs/dist/system.js"></script>
<script>
    System.config({ packages: { 'dist': {defaultExtension: 'js'}}});
    Promise.all([
        System.import('dist/greeter/greeter.spec'),
        System.import('dist/italiangreeter/italiangreeter.spec'),
    ]);
</script>

Pressing Cmd+T will now also serve italiangreeter.spec.js, which imports the ItalianGreeter class.

tests-systemjs

Stopping Tests in VS Code

You can terminate the test task by pressing Cmd+Shift+P and selecting Terminate Running Task.  Because this is something you’ll do often, you might want to add a keyboard shortcut for it.  From the Code menu select Preferences / Keyboard Shortcuts, then add the following binding, which will terminate the running task by pressing Cmd+Shift+X.

[
    { "key": "shift+cmd+x", "command": "workbench.action.tasks.terminate" }
]

Debugging Tests in VS Code

While it may be useful to run Jasmine tests in a browser, there are times when you need to launch a debugger and step through your code one line at a time.  Visual Studio Code makes it relatively painless to debug your tests.  First you’ll need to install jasmine-node using npm.

npm install --save-dev jasmine-node

Then add the following entry to the “configurations” section of your launch.json file.

{
    "name": "Debug Tests",
    "type": "node",
    "request": "launch",
    "program": "${workspaceRoot}/node_modules/jasmine-node/bin/jasmine-node",
    "stopOnEntry": false,
    "args": [
        "dist",
        "--verbose"
    ],
    "cwd": "${workspaceRoot}",
    "sourceMaps": true,
    "outDir": "${workspaceRoot}/dist"
}

Press Cmd+Shift+D to view the Debugging pane in VS Code and select “Debug Tests” from the dropdown.  Then set a breakpoint (pressing F9 will do the trick), and press F5 to launch the debugger.  Execution should pause at the breakpoint, allowing you to step through your code.


What’s Next?

In this post I showed how to write Jasmine tests in TypeScript and serve them in a browser by running a Gulp task either from the Terminal or in Visual Studio Code.  This has the advantage of automatically compiling TypeScript files and refreshing the browser whenever a source or spec file has changed.  While this works well at development time, you’ll need to use a test runner such as Karma if you want to execute tests on a continuous integration server when commits are pushed to a remote repository.  I’ll address this issue in my next post.
